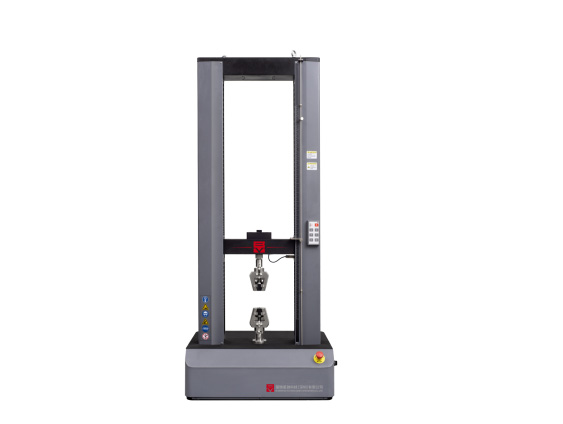

A variety of models (single column type, table type, door type) are available, with a test capacity range of 50N ~ 1000KN. The test system with high cost performance meets the needs of QA / QC test in the production environment, and ensures the accuracy and reliability of data in the whole test process. These systems are proven and easy to use, providing a wide range of tests. The new material testing machine, which combines electronic technology with mechanical transmission, has a wide and accurate loading speed and force measuring range, high precision and sensitivity for the measurement and control of load, deformation and displacement. It can also carry out the automatic control test of constant speed loading, constant speed deformation and constant speed displacement, and has the functions of low cycle load cycle, deformation cycle and displacement cycle, which can increase the productivity Equipped with environmental device for environmental test.
Application● Tension
● Compression
● Flex/Bend/p>
● Shear
Single/dual load sensor, single/dual test zone
Intelligent control, simple operation, easy to use
500~7000 Hz data acquisition rate provides more meaningful analysis（The controller is made in Germany）
Heavy duty components support longer system life
|
Rated maximum force at max test speed |
100% |
|
Rated maximum test speed at maximum force |
100% |
|
Speed accuracy |
Set speed < 0.01 mm/min: speed accuracy is within ± 1.0% of set speed Set speed ≥ 0.01 mm/min: speed accuracy is within ± 0.5% of set speed |
|
Position accuracy |
Within ± 0.5% |
|
Strain accuracy(depending on extensometer) |
± 0.5% of applied strain
|
|
Security protection |
Over-force, travel limits, over-voltage and others |
|
Over force protection |
110% |
|
Data acquisition rate |
Up to 2500 Hz |
|
Control loop rate |
Up to 7000 Hz |
|
Environmental requirements (For indoor use only) Operating temperature
Operating humidity Storage temperature Maximum storage humidity Maximum attitude |
5°C to 40°C 41 to 104°F
5% - 85% non-condensing -18 to 49°C
0 to 120°F 90%non-condensing 2000m |
|
Motor & drive system |
AC Servo Motor |
|
Ballscrews |
Pre-loaded |
|
Position measurement |
Encoder |
|
User Digital Inputs/Outputs (DIO) |
4 user Digital Inputs and 4 user Digital Outputs |
|
Encoder capacity |
4 |
